Complex Parallel Gen-set Controller with Detachable Colour Display

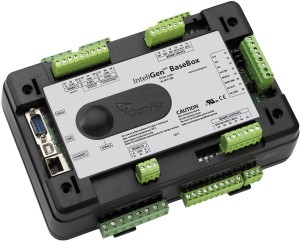

InteliGen NTC BaseBox is a comprehensive gen-set controller for both single and multiple gensets operating in standby or paralleling modes. The detachable modular construction allows easy installation with the potential for many different extension modules designed to suit individual customer requirements.
- To be used in conjunction with detachable colour displaysInteliVision 5 or InteliVision 8
- Support of engines with ECU (Electronic Control Unit)
- Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed
- Many communication options – easy remote supervising and servicing
- AirGate support, Ethernet connection (RJ45), USB 2.0 slave interface, 1× RS232 / 2× RS485 interface with Modbus protocol support; Analog / GSM / ISDN / CDMA modem communication support; SMS messages; ECU Modbus interface; secondary RS485 converter is isolated
- Automatic synchronizing and power control (via speed governor or ECU)
- AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
- Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr
- Mains measurement: U, I, Hz, kW, kVAr, PF
- Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
- Inputs and outputs configurable for various customer needs
- Bipolar binary outputs – possibility to use BO as High or Low side switch
- Controller redundancy
- Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values
- Integrated PLC programmable functions
- Integrated fixed and configurable protections
- DIN-Rail mount
- Customized firmware solution
