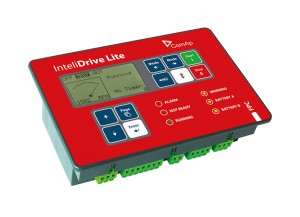

Engine Controller Designed for Diesel Driven Fire Pump Applications
- Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard
- Automatic and manual starting sequence based on two batteries according to NFPA 20 standard
- Support of engines equipped with Electronic Control Unit (ECU) – J1939 or Cummins Modbus interface
- Analog gauge (VDO, Datcon) outputs – operator friendly
- Engine speed control
- 3 configurable analog inputs + 2 analog inputs of battery voltage measurement
- 7 configurable binary inputs and outputs
- 6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)
- Selectable protections alarm/shutdown
- 1 level of password protection
- USB, RS485/RS232/Modem/Modbus communication
- Automatic SMS on alarm
- On-line control and monitoring over web pages (embedded web server) via IB-Lite
- 2 languages (user changeable)
- Real time clock and event history log
- Push buttons for simple control, lamp test
- Front panel sealed to IP65
- Based on the NFPA20 standards
- EN certification
- Comparator with hysteresis regulation
