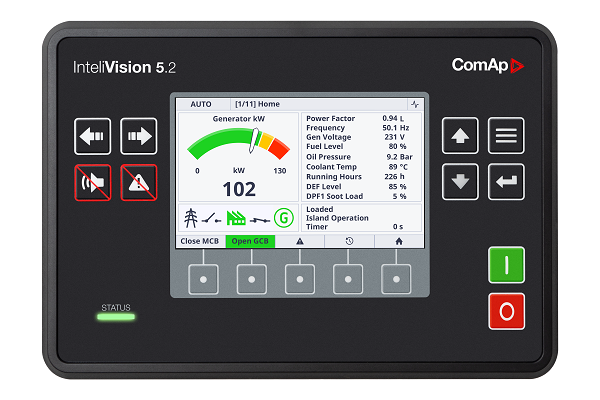

5″ Colour Display Unit
InteliVision 5.2 is a 5″ remote colour display for ComAp controllers, designed as an easy-to-use Plug & Play display for monitoring and control of single gen-set in various applications.
InteliVision 5.2 will be available at the end of Q2, 2020.
- 5″ colour screen with resolution of 800 × 480 pixels
- Plug & Play operation (auto configuration based on the controller application)
- Easy screen customization using Screen Editor (part of InteliConfig)
- 5 configurable user buttons under the screen
- Modern look and graphical user interface
- Supported controllers :
- Fast and intuitive navigation
- Multi-language support
- Trends monitoring screen (up to 4 channels)
- Communication with controller via Ethernet
- Operating temperature: -30 °C to +70 °C (-40 °C to +70 °C if the device is powered on above -30 °C).
- Front face is sealed to IP65
- 1x Analog Input, 1x Binary Output
- Easy-to-use mounting system
- Same cut out as InteliGen 500
- EMC, climatic and mechanical tests
- CE and UL certification
IMPORTANT NOTICE :
It is recommended to use both the display and controller with the newest versions of firmwares.
