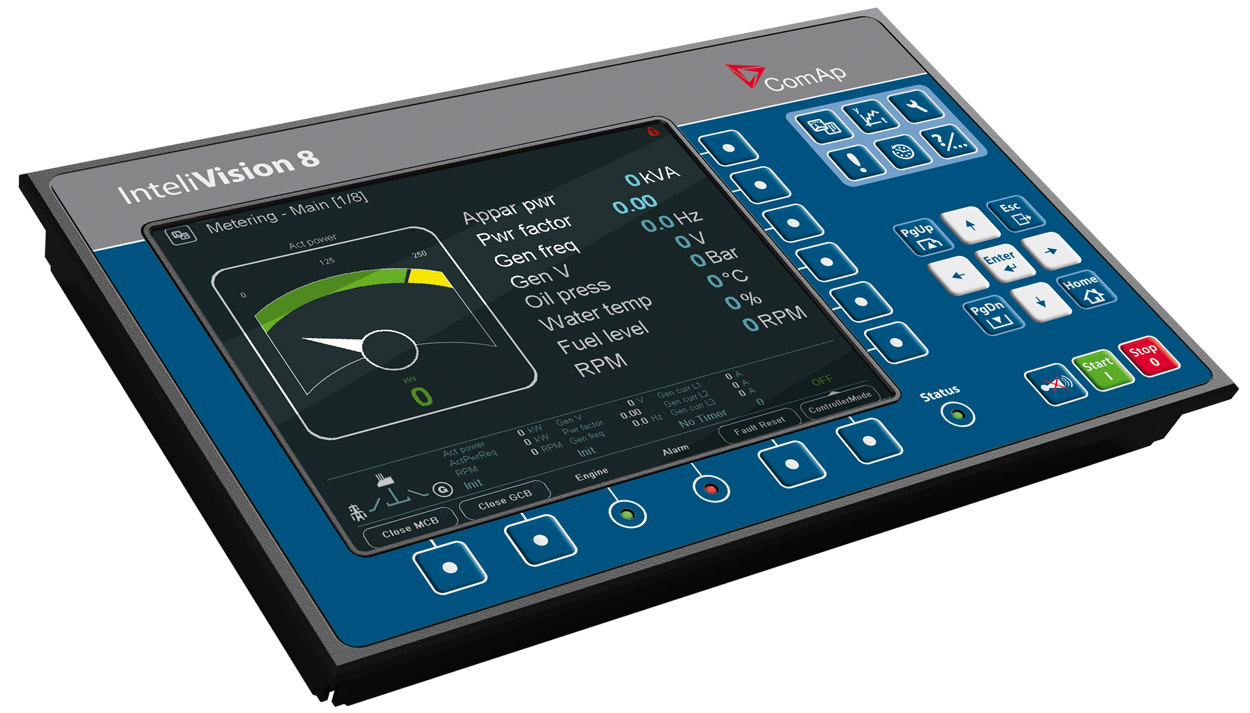

8″ Colour Detachable Display Unit for InteliSys NT, InteliGen NT, InteliMains NT, InteliDrive DCU and InteliDrive Mobile Controllers
- 8″ color TFT display with resolution of 800 x 600 pixels
- PLUG and PLAY operation (auto configuration based on controller application)
- Complete access to all control and monitoring functions
- More information in less time
- Fast and intuitive navigation
- TRENDS monitoring screen
- USB flash disk file STORAGE (export/import trends, history, archive of controller and InteliVision 8 firmware to USB stick)
- Quick auto login with USB stick
- User’s PICTURES import
- Easy Drag & Drop screen configuration in graphical editor
- ADAPTIVE and COLOUR alarm list
- CONFIGURABLE soft keys buttons:
- Fast skip to any screen
- Binary signal activation – S/R button / toggle button / pulse generator
- Association to various Genset commands
- Large History screen
- Support of Tier 4 icons
- Communication connection via of RS232/485 and CAN bus
- Same cut profile as IS-Display (simple replacement of monochrome displays)
- Mounting screw available at the rear face of InteliVision 8 to mount a compatible controller
- Direct connection to the controller (converters are not needed)
- Designed to be mounted in both monitoring and engine room
- Windows CE operating system
- Operating temperature: –20 to + 70°C
- Face is sealed to IP65
- EMC, climatic and mechanical tests
- CE, UL certification
