Hybrid power plant with 3rd party controller

Remote applications which use a combination of gen-sets and renewable sources of energy.

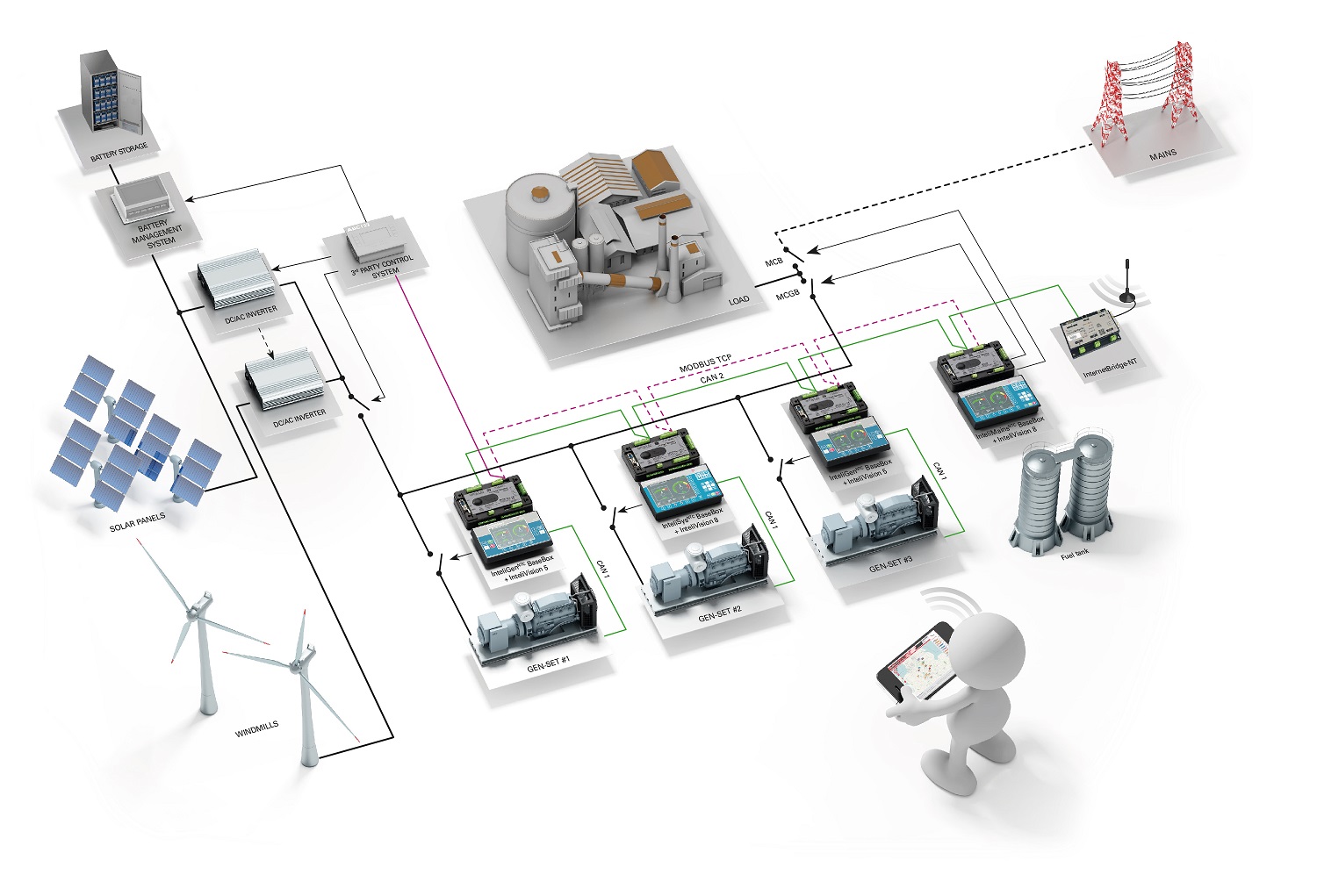

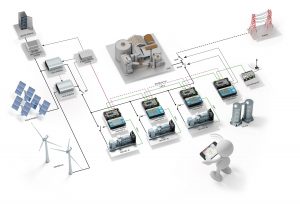

Remote places typically rely heavily on diesel gen-sets, and often the gen-sets are combined with renewable energy sources such as wind turbines or solar panels. This is called a hybrid system

Our solution:

With hybrid systems two goals are always crucial – save fuel and ensure system reliability. ComAp controllers can communicate with various control systems to deliver required performance from the hybrid power generating system.


  • Hybrid applications combine gen-sets (burning mostly fossil fuels) and renewable energy sources to reduce the amount of fuel burned.
  • ComAp controllers feature fully automatic gen-set control and protections. This allows smooth operation of the system. They also provide full ECU support for ECU equipped engines.
  • As many of these systems are located in remote locations they can profit from ComAp’s remote communication tools.
  • ComAp controllers are also prepared to cooperate with 3rd party controller.
  • Intercommunication between 3rd party system and ComAp controller can be realized via Modbus RTU, Modbus TCP or analog line.
  • There can be up to 32 ComAp controllers connected together and working in this system (including InteliGen NT BaseBox, InteliSys NT BaseBox and InteliMains NT BaseBox).
  • To ensure the system stability and to allow higher penetration of renewables ComAp has developed the function called Dynamic Spinning Reserve.
    • This function allows the system to react flexibly to the changes in power produced by renewable energy sources.
    • ComAp controllers can react to requested spinning reserve and keep the sufficient amount of gen-sets running to cover the drop in output of the renewable part (e.g. when the could covers the PV array).
  • For activation of Dynamic Spinning Reserve it is necessary to install the hybrid software and activate the Dynamic Spinning Reserve function (contact your official distributor for activation).

Scope of supply:

SW is available for InteliSys NTC Basebox, InteliGen NT(C) Basebox and InteliMains NT(C) Basebox controllers.

Related files:

  • Brochure: Hybrid Solutions
  • Software: IM-NT-HYBRID 1.0.0.
  • Manual: IM-NT-HYBRID 1.0.0. New Features
  • Software: IGS-NT-HYBRID 1.0.0.
  • Manual: IGS-NT-HYBRID User Guide
