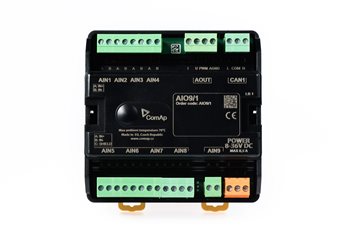

AIO9/1

Analog Input Output Module

9 Analog Input / 1 Analog Output

The AIO9/1 is an external module suitable for measurement and control of analog inputs and output through CAN interface. The module enables tracking of voltage and current in 4 nodes in telecommunication applications with nominal voltage of 48 V and is optimized for usage with InteliLite Telecom DC controller. Typically measures Battery, DC Generator, Load and Auxiliarry (Photovoltaic or Wind) source.
· Inputs and Outputs

      • 4x differential voltage inputs for measurement in range of 0 – 65V or -65V – 0V (grounded positive node of telecommunication application)
      • 4x shielded, galvanically separated ±75mV inputs for DC current measurement on resistor shunts
      • One Speed Governor or Generator Voltage Regulator output: galvanically separated analog outputs with 0 – 20 mA, 0 – 10 VDC, PWM option
      • Resistance analog input 0 – 2500 ohm for battery temperature measuring and consequent charging characteristics compensation
