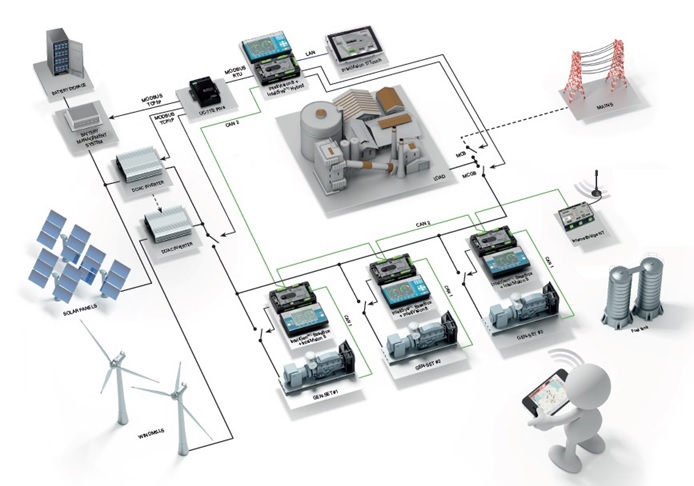

Hybrid power plant using Sunpower’s hybrid solution

Description:

  • Hybrid applications combine gen-sets (burning mostly fossil fuels) and renewable energy sources to reduce the amount of fuel burned.
  • Sunpower controllers feature fully automatic gen-set control and protections. This allows smooth operation of the system. They also provide full ECU support for ECU equipped engines.
  • As many of these systems are located in remote locations they can profit from Sunpower’s remote communication tools.
  • Sunpower has developed a dedicated controller for Hybrid applications InteliSysNTC Hybrid
  • To ensure the system stability and to allow higher penetration of renewables Sunpower has developed the function called Dynamic Spinning Reserve.
    • This function allows the system to react flexibly to the changes in power produced by renewable energy sources.
    •  Sunpower controllers can react to requested spinning reserve and keep the sufficient amount of gen-sets running to cover the drop in output of the renewable part (e.g. when the could covers the PV array).
  • Fuel save mode manages outputs from gen-sets of different sizes, power outputs and different manufacturers, in such case the fuel save mode will automatically choose the most efficient combination of gen-sets based on their size to save some extra fuel.
  • Interface to frequency inverters is necessary to prevent gen-sets from running under certain percentage of their nominal loads. In such case the controller regulates the inverter output to prevent the gen-sets from running under-loaded. Also in parallel to grid applications this allows to prevent the site from feeding the grid in places where it is not allowed.

Scope of supply:

  • 1x InteliSys NTC Hybrid
  • 1x InteliVision 17Touch
  • 3x InteliVision 8
  • 1x InteliSys NTC BaseBox
  • 2x InteliVision 5
  • 2x InteliGen NTC BaseBox
  • 1x InteliMains NTC BaseBox
  • 1x InternetBridge-NT

w300-Hybrid power plant using Sunpower’s hybrid solution
